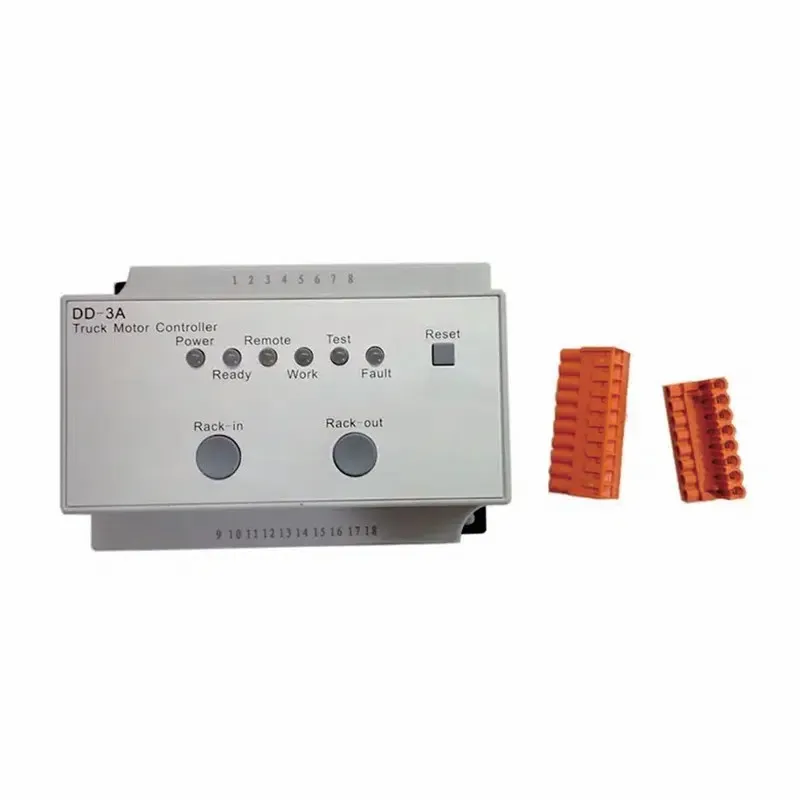

Electric controller for medium voltage gas insulated switchgear RMU

The Electric Controller for Medium Voltage Gas Insulated Switchgear RMU ensures precise control, monitoring, and protection of switchgear operations. Designed for reliability and safety, it optimizes energy distribution, prevents faults, and integrates seamlessly with RMU systems, making it ideal for industrial, utility, and commercial medium-voltage electrical networks.

Contate-nos

Solicitação on-line

Correspondência：sales@vcbbreaker.com

Whatsapp：8613736779975

Detalhado

Precaution

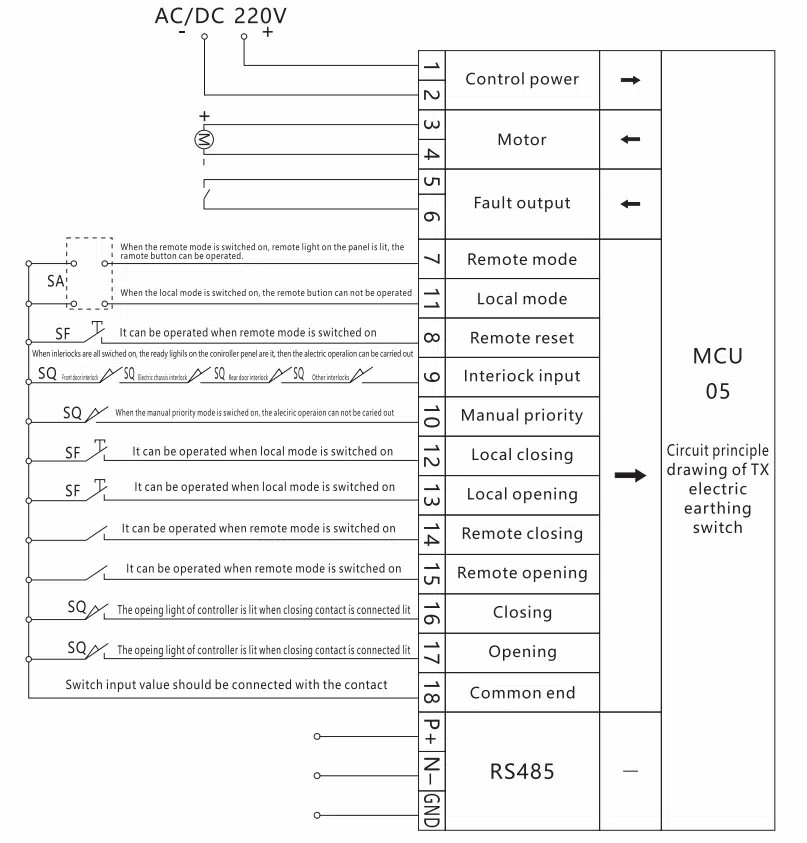

The limit switches at contacts 14, 15 (MCU04TX electric earthing switch controller) or 16, 17 (MC05 TX electric earthing switch controller) are for earthing switches. Connect the controller contacts to the corresponding switch contacts.

During the closing and opening operation of the controller,press the reset button if the alarm light remains on. Pay attention to the polarity of the motor during wiring.

The system can also be used in conjunction with a microcomputer protection device when engaging and disengaging. There are two modes: local and remote. Only one mode can be active at a time.
